Name: Ubiquiti Indoor/Outdoor 5-Port PoE Gigabit Switch with 802.3bt Input Power Support - USW-FLEX-3
Brand: Ubiquiti Inc.
SKU: 8LQ816
Price: 301.15 USD

Ubiquiti Indoor/Outdoor 5-Port PoE Gigabit Switch with 802.3bt Input Power Support - USW-FLEX-3

Product form

Ubiquiti Inc.

Ubiquiti Indoor/Outdoor 5-Port PoE Gigabit Switch with 802.3bt Input Power Support - USW-FLEX-3

General Information Manufacturer: Ubiquiti Inc. Manufacturer Part Number: USW-FLEX-3 Manufacturer Website Address: http://www.ui.com Brand Name: Ubiquiti Product Line: UniFi Switch... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$301.15

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 8LQ816
Barcode: 0817882028684

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Ubiquiti Inc.

Manufacturer Part Number: USW-FLEX-3

Manufacturer Website Address: http://www.ui.com

Brand Name: Ubiquiti

Product Line: UniFi Switch Flex

Product Model: USW-FLEX

Product Name: Indoor/Outdoor 5-Port PoE Gigabit Switch with 802.3bt Input Power Support

Marketing Information: Build and expand your network with the UniFi® Switch Flex, model USW-Flex. It is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. Five RJ45 Gigabit Ethernet ports provide one PoE input and four PoE output links to your devices.

Switching Performance

The USW-Flex offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE Flexibility

The USW-Flex features five Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network.

Port 1 provides PoE input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af, such as G3 Flex cameras, are supported.

Indoor/Outdoor Design

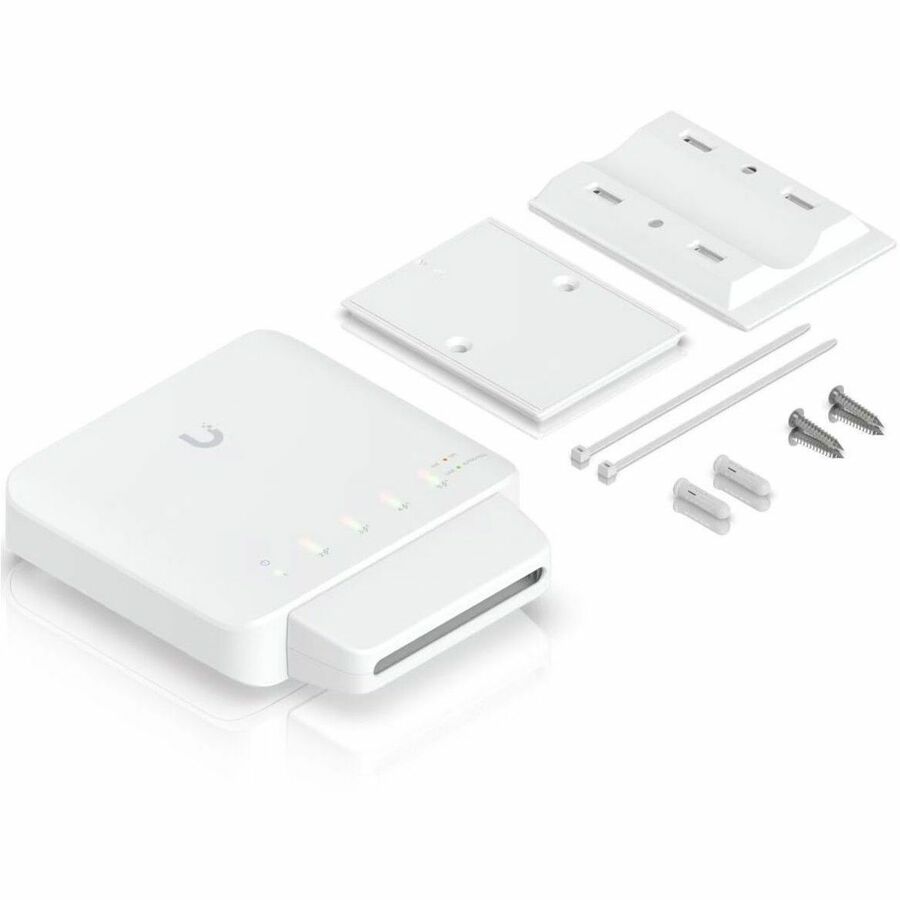

The USW-Flex can be installed horizontally or vertically and offers versatile mounting options: desktop, wall, and pole.

The weather-resistant USW-Flex can withstand extreme temperature variations. If the USW-Flex is installed at an exposed location outdoors, we recommend the UniFi Switch Flex Utility, model USW-Flex-Utility, which is designed for use with the USW-Flex.

Outdoor Enclosure Accessory

An outdoor weatherproof enclosure, the USW Flex Utility, is available as an optional accessory. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W.

Easily mounted on a pole, the USW Flex Utility provides clean cable management and a screw lock for security.

Scalable UniFi Network Application

Management Capabilities

The UniFi Network Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Deep Packet Inspection

Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Application provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Switch Port Status

You can also view status information for each port:

Connection speed and duplex mode
TX/RX data rates
Network/VLAN setting

Switch Configuration

You can access any managed UniFi Switch through the UniFi Network Application to configure a variety of features:

Operation mode (switching or mirroring) per port
Network/VLAN configuration
Jumbo frame services
Network settings
Debug terminal option for commandline interface

Software Features

The UniFi Network Application software offers the following features:

Centralized configuration management (including configuration cloning)

Packaged Quantity: 3

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of Network Ports: 5

Port/Expansion Slot Details: 5 x Gigabit Ethernet PoE

Media & Performance

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Network & Communication

Layer Supported: 2

Power Description

PoE (RJ-45) Port: Yes

PoE Budget: 46 W

Power Source: PoE

Power Consumption: 5 W

Physical Characteristics

Form Factor:

Desktop
Wall Mountable
Pole Mount

Height: 1.1"

Width: 4.8"

Depth: 4.2"

Weight (Approximate): 8.11 oz

Miscellaneous

Package Contents:

Indoor/Outdoor 5-Port PoE Gigabit Switch with 802.3bt Input Power Support
Ethernet Patch Cable
1 x 60W PoE Adapter

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
